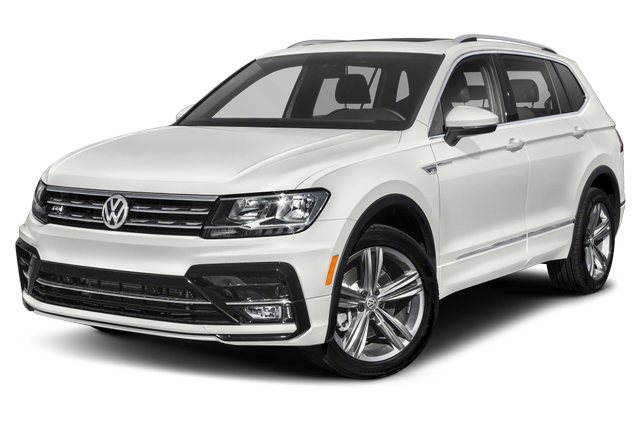

Showing the 2020 Volkswagen Tiguan 2.0T SEL Premium R-Line 4MOTION
Shop NowInterior
Saffrano Orange & Black
Onyx
Gray
$99
Starting MSRP
$760
Starting MSRP
$810
Starting MSRP
| EPA Classification | Small SUV 4WD |
| Front Wheel Size | 20 X 8.5 in |
| Rear Wheel Size | 20 X 8.5 in |
| Front Wheel Material | Aluminum |
| Spare Wheel Material | Steel |
| Spare Wheel Size | Compact in |
| Rear Wheel Material | Aluminum |
| Cold Cranking Amps @ 0° F (Primary) | 360 |
| Maximum Alternator Capacity (amps) | N/A |
| SAE Net Torque @ RPM | 221 @ 1600 |
| Engine Type | Intercooled Turbo Regular Unleaded I-4 |
| Displacement | 2.0 L/121 |
| SAE Net Horsepower @ RPM | 184 @ 4400 |
| Cruising Range - City | 318.00 mi |
| Fuel Economy Est-Combined | 23 MPG |
| EPA MPG Equivalent - Combined | N/A |
| EPA Fuel Economy Est - Hwy | 27 MPG |
| Estimated Battery Range | N/A mi |
| EPA MPG Equivalent - City | N/A |
| EPA MPG Equivalent - Hwy | N/A |
| Cruising Range - Hwy | 429.30 mi |
| EPA Fuel Economy Est - City | 20 MPG |
| Seventh Gear Ratio (:1) | 0.81 |
| Trans Description Cont. | Automatic w/OD |
| Transfer Case Gear Ratio (:1), Low | N/A |
| Trans Description Cont. Again | N/A |
| Final Drive Axle Ratio (:1) | 3.33 |
| Transfer Case Gear Ratio (:1), High | N/A |
| Third Gear Ratio (:1) | 1.95 |
| First Gear Ratio (:1) | 5.59 |
| Drivetrain | All Wheel Drive |
| Fourth Gear Ratio (:1) | 1.43 |
| Second Gear Ratio (:1) | 3.14 |
| Fifth Gear Ratio (:1) | 1.21 |
| Sixth Gear Ratio (:1) | 1.00 |
| Trans Type | 8 |
| Reverse Ratio (:1) | 3.99 |
| Eighth Gear Ratio (:1) | 0.67 |
| Suspension Type - Front (Cont.) | Strut |
| Suspension Type - Rear (Cont.) | Multi-Link |
| Suspension Type - Rear | Multi-Link |
| Suspension Type - Front | Strut |
| Drum - Rear (Yes or ) | N/A |
| Brake ABS System (Second Line) | N/A |
| Rear Brake Rotor Diam x Thickness | 11.8 in |
| Disc - Rear (Yes or ) | Yes |
| Brake ABS System | 4-Wheel |
| Brake Type | 4-Wheel Disc |
| Front Brake Rotor Diam x Thickness | 13.4 in |
| Disc - Front (Yes or ) | Yes |
| Aux Fuel Tank Capacity, Approx | N/A gal |
| Fuel Tank Capacity, Approx | 15.9 gal |
| Turning Diameter - Curb to Curb | 37.7 ft |
| Steering Type | Rack-Pinion |
| Lock to Lock Turns (Steering) | N/A |
| Steering Ratio (:1), Overall | N/A |
| Turning Diameter - Wall to Wall | N/A ft |
| Spare Tire Size | Compact |
| Rear Tire Size | P255/40HR20 |
| Front Tire Size | P255/40HR20 |
| Wt Distributing Hitch - Max Trailer Wt. | 1500 lbs |
| Dead Weight Hitch - Max Trailer Wt. | 1500 lbs |
| Dead Weight Hitch - Max Tongue Wt. | 150 lbs |
| Maximum Trailering Capacity | 1500 lbs |
| Wt Distributing Hitch - Max Tongue Wt. | 150 lbs |
| Maximum Payload Capacity | N/A lbs |
| Curb Weight - Front | N/A lbs |
| Curb Weight - Rear | N/A lbs |
| Curb Weight | N/A lbs |
| Base Curb Weight | 3847 lbs |
| Total Option Weight | 0.00 lbs |
| Passenger Capacity | 5 |
| Liftover Height | N/A in |
| Rear Door Opening Width | N/A in |
| Cargo Area Width @ Beltline | N/A in |
| Length, Overall | 185.1 in |
| Second Leg Room | 38.7 in |
| Height, Overall | 66.3 in |
| Third Head Room | N/A in |
| Third Leg Room | N/A in |
| Wheelbase | 109.8 in |
| Cargo Volume to Seat 2 | 37.6 ft³ |
| Second Head Room | 38.9 in |
| Cargo Box Width @ Wheelhousings | N/A in |
| Front Leg Room | 40.2 in |
| Cargo Area Length @ Floor to Seat 2 | N/A in |
| Second Shoulder Room | 55.8 in |
| Second Hip Room | N/A in |
| Cargo Area Length @ Floor to Seat 3 | N/A in |
| Third Shoulder Room | N/A in |
| Third Hip Room | N/A in |
| Track Width, Rear | 61.8 in |
| Cargo Area Length @ Floor to Seat 1 | N/A in |
| Front Hip Room | N/A in |
| Cargo Volume to Seat 3 | 37.6 ft³ |
| Cargo Box (Area) Height | N/A in |
| Track Width, Front | 62.2 in |
| Front Shoulder Room | 57 in |
| Passenger Volume | 101.1 ft³ |
| Front Head Room | 39.6 in |
| Width, Max w/o mirrors | 72.4 in |
| Cargo Volume to Seat 1 | 73.5 ft³ |
| Min Ground Clearance | 7.9 in |
| Rear Door Opening Height | N/A in |
| Radio: Discover Media AM/FM/HD -inc: 8" touchscreen navigation, dual USB input, voice control, Fender premium audio system w/subwoofer, VW App-Connect smartphone integration and interface w/Apple CarPlay, Android Auto and MirrorLink, capability for in-vehicle 4G LTE enabled Wi-Fi (cellular data plan required; includes limited trial), capability for VW Car-Net services (capabilities for certain services vary; requires enrollment or subscription), Bluetooth connectivity (for compatible devices), SiriusXM satellite radio w/limited-time trial subscription and USB charging-only port facing 2nd row seat | Optional |
| Streaming Audio | Standard |
| Window Grid And Roof Mount Diversity Antenna | Standard |
| Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System | Standard |
| Siriusxm Traffic Real-Time Traffic Display | Optional |
| Audio Theft Deterrent | Standard |
| 400w Regular Amplifier | Optional |
| 2 LCD Monitors In The Front | Optional |
| Power Liftgate Rear Cargo Access | Optional |
| Deep Tinted Glass | Standard |
| Perimeter/Approach Lights | Standard |
| Lip Spoiler | Standard |
| Headlights-Automatic Highbeams | Optional |
| Wheels: 20" 2-Tone Machined Dark Graphite Alloy | Optional |
| Tailgate/Rear Door Lock Included w/Power Door Locks | Standard |
| Body-Colored Front Bumper w/Black Rub Strip/Fascia Accent | Optional |
| Compact Spare Tire Mounted Inside Under Cargo | Standard |
| Fully Galvanized Steel Panels | Standard |
| Body-Colored Rear Bumper w/Black Rub Strip/Fascia Accent and Chrome Bumper Insert | Optional |
| Auto On/Off Aero-Composite Led Low/High Beam Daytime Running Auto-Leveling Directionally Adaptive Auto High-Beam Headlamps w/Delay-Off | Optional |
| Express Open/Close Sliding And Tilting Glass 1st And 2nd Row Sunroof w/Power Sunshade | Optional |
| Chrome Bodyside Insert, Body-Colored Bodyside Cladding and Black Wheel Well Trim | Optional |
| LED Brakelights | Standard |
| Fixed Rear Window w/Fixed Interval Wiper and Defroster | Standard |
| Cornering Lights | Optional |
| Body-Colored Power Heated Side Mirrors w/Power Folding and Turn Signal Indicator | Optional |
| Steel Spare Wheel | Standard |
| Front Fog Lamps | Optional |
| Chrome Side Windows Trim and Black Front Windshield Trim | Optional |
| Tires: 255/40R20 All-Season | Optional |
| Rain Detecting Variable Intermittent Wipers w/Heated Jets And Wiper Park | Optional |
| Chrome Grille | Standard |
| Roof Rack Rails Only | Standard |
| Body-Colored Door Handles | Standard |
| Leatherette Door Trim Insert | Optional |
| Outside Temp Gauge | Standard |
| Full Cloth Headliner | Standard |
| 8-Way Driver Seat | Optional |
| Immobilizer | Optional |
| Front Cupholder | Standard |
| FOB Controls -inc: Cargo Access and Remote Start | Optional |
| Heated Leather/Piano Black Steering Wheel | Optional |
| Redundant Digital Speedometer | Standard |
| Digital/Analog Appearance | Optional |
| Full Floor Console w/Covered Storage, Mini Overhead Console w/Storage and 3 12V DC Power Outlets | Standard |
| Carpet Floor Trim | Standard |
| Trunk/Hatch Auto-Latch | Optional |
| Leather/Metal-Look Gear Shifter Material | Optional |
| Proximity Key For Doors And Push Button Start | Optional |
| Perimeter Alarm | Optional |
| Distance Pacing w/Traffic Stop-Go | Optional |
| Manual Tilt/Telescoping Steering Column | Standard |
| Front Center Armrest and Rear Center Armrest | Standard |
| Power 1st Row Windows w/Front And Rear 1-Touch Up/Down | Standard |
| Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror | Standard |
| Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button | Standard |
| Cargo Area Retractable Privacy Cover (PIO) | Optional |
| Driver Foot Rest | Standard |
| Power Door Locks w/Autolock Feature | Standard |
| Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints | Standard |
| Trip Computer | Standard |
| Rear Cupholder | Standard |
| Passenger Seat | Standard |
| Memory Settings -inc: Door Mirrors | Optional |
| Interior Trim -inc: Metal-Look Instrument Panel Insert, Metal-Look Door Panel Insert and Metal-Look Interior Accents | Standard |
| Front And Rear Map Lights | Standard |
| Dual Zone Front Automatic Air Conditioning | Optional |
| Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Oil Temperature, Trip Odometer and Trip Computer | Standard |
| Day-Night Auto-Dimming Rearview Mirror | Optional |
| Seats w/Leatherette Back Material | Optional |
| Heated Front Comfort Sport Seats -inc: 10-way power driver's seat w/power lumbar support, driver's seat position memory and 6-way manual front passenger seat w/height adjustment | Optional |
| Power Fuel Flap Locking Type | Standard |
| HVAC -inc: Underseat Ducts and Console Ducts | Standard |
| Driver Information Center | Standard |
| Power Rear Windows and Fixed 3rd Row Windows | Standard |
| Tracker System | Optional |
| Cargo Area Concealed Storage | Standard |
| 2 Seatback Storage Pockets | Standard |
| Cruise Control w/Steering Wheel Controls | Standard |
| Cargo Space Lights | Standard |
| 40-20-40 Folding Split-Bench Front Facing Manual Reclining Fold Forward Seatback Rear Seat w/Manual Fore/Aft | Standard |
| Vienna Leather Seating Surfaces | Optional |
| Air Filtration | Standard |
| 3 12V DC Power Outlets | Standard |
| Fade-To-Off Interior Lighting | Standard |
| Instrument Panel Covered Bin, Dashboard Storage, Driver / Passenger And Rear Door Bins | Standard |
| Compass | Standard |
| Illuminated Glove Box | Standard |
| Full Carpet Floor Covering | Standard |
| Remote Releases -Inc: Proximity Cargo Access | Optional |
| Towing Equipment -inc: Trailer Sway Control | Standard |
| Multi-Link Rear Suspension w/Coil Springs | Standard |
| 69-Amp/Hr 360CCA Maintenance-Free Battery w/Run Down Protection | Standard |
| Strut Front Suspension w/Coil Springs | Standard |
| Front And Rear Anti-Roll Bars | Standard |
| Quasi-Dual Stainless Steel Exhaust | Standard |
| 3.33 Axle Ratio | Standard |
| 4-Wheel Independent Suspension | Standard |
| Electric Power-Assist Speed-Sensing Steering | Standard |
| Engine: 2.0L TSI DOHC Turbocharged 4-Cylinder -inc: 16-valve, direct fuel injection | Standard |
| Regenerative Alternator | Standard |
| Transmission w/Oil Cooler | Standard |
| Full-Time All-Wheel | Optional |
| Engine Oil Cooler | Standard |
| Permanent Locking Hubs | Optional |
| 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake | Optional |
| Gas-Pressurized Shock Absorbers | Standard |
| 926# Maximum Payload | Optional |
| GVWR: 5,093 lbs (2,310 kgs) | Optional |
| Engine Auto Stop-Start Feature | Standard |
| Transmission: 8-Speed Automatic w/Tiptronic -inc: sport mode, active control and driving mode selection including off-road mode | Optional |
| 15.9 Gal. Fuel Tank | Optional |
| Dual Stage Driver And Passenger Seat-Mounted Side Airbags | Standard |
| Rear Child Safety Locks | Standard |
| Area View Back-Up Camera | Optional |
| Dual Stage Driver And Passenger Front Airbags | Standard |
| Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners | Standard |
| Park Distance Control Front And Rear Parking Sensors | Optional |
| Low Tire Pressure Warning | Standard |
| Area View Front Camera | Optional |
| Area View Right Side Camera | Optional |
| Lane Keeping System (Lane Assist) Lane Keeping Assist | Optional |
| Electronic Stability Control (ESC) | Standard |
| Side Impact Beams | Standard |
| Collision Mitigation-Front | Standard |
| Airbag Occupancy Sensor | Standard |
| Side Curtain Protection Curtain 1st, 2nd And 3rd Row Airbags | Standard |
| FCW w/Autonomous Emergency Braking | Standard |
| Side Assist Blind Spot | Standard |
| Lane Keeping System (Lane Assist) Lane Departure Warning | Optional |
| Aerial View Camera System | Optional |
| Collision Mitigation-Rear | Standard |
| Area View Left Side Camera | Optional |
| ABS And Driveline Traction Control | Standard |
| VW Car-Net services (capabilities require enrollment or subscription) Emergency Sos | Standard |
