1998 Toyota Sienna XLE specs & colors

Mini-van, Passenger

Change trim

$27,230

Starting MSRP
Current listing price

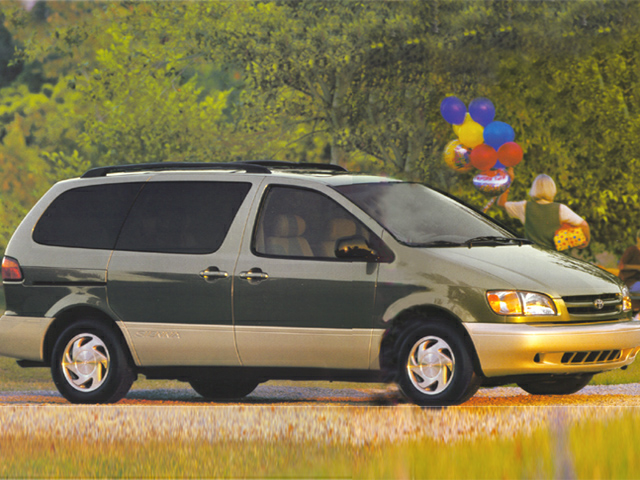

Showing the 1998 Toyota Sienna 5dr XLE

Shop Now

Color options

Exterior

Interior

No colors available

Packages

Specifications

Spare Wheel Material	Steel
Rear Wheel Material	Aluminum
Spare Wheel Size	15 x 6.5 in
Front Wheel Material	Aluminum
Front Wheel Size	15 x 6.5 in
Rear Wheel Size	15 x 6.5 in

Cruising Range - Hwy	501.60 mi
EPA Fuel Economy Est - Hwy	24 MPG
EPA MPG Equivalent - Combined	N/A
Cruising Range - City	376.20 mi
EPA MPG Equivalent - Hwy	N/A
EPA Fuel Economy Est - City	18 MPG
Fuel Economy Est-Combined	N/A MPG
EPA MPG Equivalent - City	N/A
Estimated Battery Range	N/A mi

Trans Description Cont. Again	Electronic
Drivetrain	Front Wheel Drive
Fourth Gear Ratio (:1)	0.73
Final Drive Axle Ratio (:1)	3.73
Second Gear Ratio (:1)	1.55
First Gear Ratio (:1)	2.81
Third Gear Ratio (:1)	1.00
Reverse Ratio (:1)	2.30
Trans Description Cont.	Automatic w/OD
Trans Type	4

Front Brake Rotor Diam x Thickness	10.7 x 1.1 in
Brake ABS System	4-Wheel
Brake Type	Pwr
Disc - Front (Yes or )	Yes
Drum - Rear (Yes or )	Yes
Brake ABS System (Second Line)	N/A

Cargo Volume to Seat 3	17.9 ft³
Passenger Volume	N/A ft³
Front Hip Room	58.7 in
Second Head Room	39.4 in
Passenger Capacity	7
Cargo Area Length @ Floor to Seat 2	54.3 in
Cargo Volume to Seat 1	119.1 ft³
Cargo Volume to Seat 2	60.0 ft³
Second Leg Room	36.6 in
Third Hip Room	50.0 in
Height, Overall	66.9 in
Cargo Area Width @ Beltline	49.0 in
Cargo Box (Area) Height	41.1 in
Trunk Volume	N/A ft³
Length, Overall	193.5 in
Third Shoulder Room	60.5 in
Wheelbase	114.2 in
Front Head Room	40.6 in
Cargo Area Length @ Floor to Seat 1	86.7 in
Front Leg Room	41.6 in
Width, Max w/o mirrors	73.4 in
Cargo Area Length @ Floor to Seat 3	N/A in
Third Leg Room	32.8 in
Track Width, Front	61.6 in
Second Shoulder Room	62.1 in
Cargo Box Width @ Wheelhousings	47.6 in
Third Head Room	37.1 in
Liftover Height	24.6 in
Rear Door Opening Width	49.0 in
Min Ground Clearance	5.9 in
Track Width, Rear	63.4 in
Rear Door Opening Height	37.3 in
Front Shoulder Room	60.4 in
Second Hip Room	63.2 in

Child-protector sliding door locks	Standard
Pwr windows w/driver-side auto-down, retained pwr	Standard
Removable third-row 50/50 split fold-down/tilt-forward seats w/adjustable headrests, cup holders, seatback tables	Standard
Variable-assist pwr rack & pinion steering	Standard
Front wheel drive	Standard
20.9 gallon fuel tank	Standard
Front bucket seats w/headrests	Standard
MacPherson strut front suspension w/gas-filled shock absorbers, stabilizer bar	Standard
High Solar Energy-Absorbing (HSEA) glass	Standard
Front/rear auxiliary pwr outlet	Standard
Side-impact door beams	Standard
Color-keyed protective body-side cladding	Optional
Pwr door locks w/anti-lockout feature	Standard
Removable center-row captain chairs w/integrated cup holders, seatback tables	Optional
3-point front shoulder belts w/pretensioners, adjustable anchors	Standard
Anti-theft system w/remote keyless entry	Optional
Electronic distributorless direct ignition system	Standard
Roof rack	Optional
Premium ETR AM/FM stereo w/CD, (6) speakers	Optional
4-speed electronically-controlled automatic transmission w/OD	Standard
Rear window defogger w/timer	Standard
Tachometer	Standard
2-point third-row center lap belt	Standard
City 18/hwy 24 (3.0L engine/4-speed auto trans)	Standard
Remote releases-inc: hood, fuel-filler door	Standard
Defroster-linked dual air conditioning w/rear control panel	Standard
Cruise control	Standard
Collapsible steering column	Standard
3.0L four-cam EFI 24-valve V6 engine	Standard
3-point center-row/third-row outboard shoulder belts	Standard
Full size spare tire	Optional
4-sensor/3-channel anti-lock brake system	Standard
Headlamp auto-control system	Optional
Dual front/middle/rear cup holders	Standard
Leather-wrapped tilt steering wheel	Optional
Torsion beam rear suspension w/gas-filled shock absorbers, coil springs	Standard
Warning lights-inc: air bag, seat belts, fuel level, door-ajar, battery, anti-lock brakes, engine, oil pressure, low tire pressure, low washer fluid	Standard
Driver & front passenger air bag Supplemental Restraint System (SRS)	Standard
Digital clock	Standard
Instrumentation-inc: speedometer, temp/fuel gauges, digital odometer, dual tripmeters, transmission indicator	Standard
Intermittent rear wiper	Standard
Multi-adjustable pwr driver seat	Optional
Variable intermittent front windshield wipers	Standard
15" aluminum alloy wheels	Optional
Pwr-assisted front ventilated disc/rear drum brakes	Standard
Carpeted floor mats	Optional
Dual sliding doors	Optional
7-passenger seating	Standard
Dual illuminated visor vanity mirrors	Standard
4-sensor/3-channel anti-lock brake system	Standard
Aerodynamic halogen headlamps	Standard
P215/65R15 all-season SBR BSW tires	Optional
Rear quarter privacy glass	Standard
Front anti-vibration sub-frame	Standard
Dual fold-away pwr heated outside mirrors	Optional
Front/center/rear dome lights	Standard
Fabric seat trim	Standard
Overhead console w/storage	Standard
Pwr rear quarter windows	Standard
Front/rear crumple zones	Standard

Compare trims

Wondering which trim is right for you?

Our 1998 Toyota Sienna trim comparison will help you decide.

Maximum Alternator Capacity (amps)	100
Cold Cranking Amps @ 0° F (Primary)	582

SAE Net Horsepower @ RPM	194 @ 5200
SAE Net Torque @ RPM	209 @ 4400
Engine Type	Gas V6
Displacement	3.0L/183

Suspension Type - Rear	Torsion Beam
Suspension Type - Front	MacPherson Strut
Suspension Type - Rear (Cont.)	w/Coil Springs

Aux Fuel Tank Capacity, Approx	N/A gal
Fuel Tank Capacity, Approx	20.9 gal

Turning Diameter - Curb to Curb	40.0 ft
Steering Ratio (:1), Overall	17.4
Turning Diameter - Wall to Wall	N/A ft
Lock to Lock Turns (Steering)	2.9
Steering Type	Pwr Rack & Pinion

Front Tire Size	P215/65R15
Rear Tire Size	P215/65R15
Spare Tire Size	P215/65R15

Dead Weight Hitch - Max Tongue Wt.	200 lbs
Wt Distributing Hitch - Max Tongue Wt.	N/A lbs
Dead Weight Hitch - Max Trailer Wt.	2000 lbs
Wt Distributing Hitch - Max Trailer Wt.	N/A lbs
